Zaces
787 5001 - 787 5018

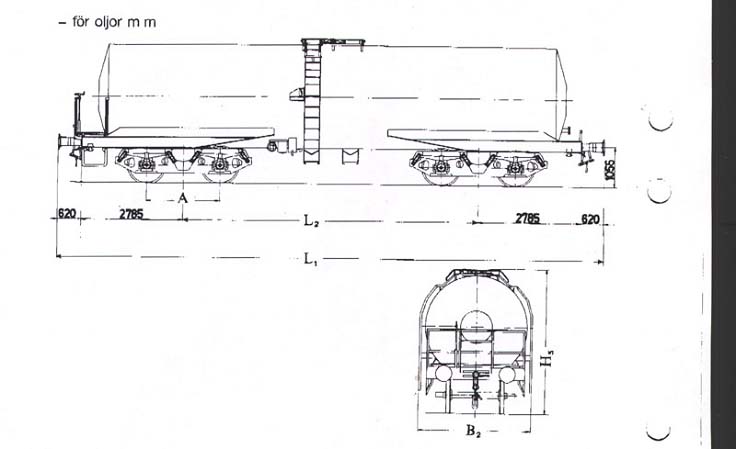

Line Drawing courtesy SJ GreenCargo © copyright GreenCargo Website
| Class | Zaces |
| Length (over buffers) | 14.810m |
| Height (overall) | 4.280m |
| Width (overall) | 3.080m |
| Weight | 24.5t |
| Capacity | 63 m3 |
| Bogie Wheelbase | 2m |
| Distance b/n bogie pivot centres | 8m |
Zaces
787 5023 - 787 5026
Line Drawing courtesy SJ GreenCargo © copyright GreenCargo Website
| Class | Zaces |
| Length (over buffers) | 14.810m |
| Height (overall) | 3.895m |
| Width (overall) | 3.110m |
| Weight | 24.7t |
| Capacity | 63 m3 |
| Bogie Wheelbase | 2m |
| Distance b/n bogie pivot centres | 8m |
